AR配置WLAN【FAT模式，双SSID】

更新时间：2022-09-09

适用于：型号中带“W”标识的AR路由器。

组网需求

企业使用无线路由器，希望能够部署不同的SSID为员工和访客提供无线上网服务。

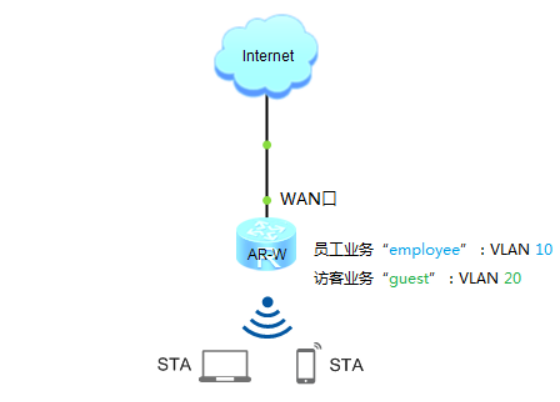

拓扑简图

数据规划

DHCP部署方式：AR作为DHCP服务器为AP和STA分配IP地址。

员工业务：VLAN 10，SSID为“employee”，密码为“huawei@123”，网段为10.10.10.1/24。

访客业务：VLAN 20，SSID为“guest”，密码为“abcd@123”，网段为10.10.20.1/24。

操作步骤

一、配置接口IP和DHCP服务器（为STA分配IP）

<AR> system-view                                                                          //先从用户视图切换到系统视图再进行配置

[AR] vlan batch 10 20                                                                      //创建规划好的业务VLAN

[AR] dhcp enable                                                                             //打开DHCP总开关

[AR] interface vlanif 10                                                                    //创建VLANIF10接口

[AR-Vlanif10] ip address 10.10.10.1 255.255.255.0                         //配置IP地址，此IP地址是VLAN10用户的网关地址

[AR-Vlanif10] dhcp select interface                                                 //启用接口地址池方式的DHCP服务器功能

[AR-Vlanif10] dhcp server dns-list 114.114.114.114                       //配置用户上网时用到的DNS服务器地址

[AR-Vlanif10] quit

[AR] interface vlanif 20                                                                    //创建VLANIF20接口

[AR-Vlanif20] ip address 10.10.20.1 255.255.255.0                         //配置IP地址，此IP地址是VLAN20用户的网关地址

[AR-Vlanif20] dhcp select interface

[AR-Vlanif20] dhcp server dns-list 114.114.114.114

[AR-Vlanif20] quit

二、配置WLAN业务（提供无线网络）

1. 全局启用dot1x

说明：认证方式为WPA/WAP2-PSK认证时，需要全局启用dot1x特性。

[AR] dot1x enable

2.  配置服务集

·

配置员工网络的服务集（employee）

·

[AR] interface wlan-bss 1                                                                 //创建WLAN-BSS1接口并加入相应业务VLAN

[AR-Wlan-Bss1] port hybrid tagged vlan 10

[AR-Wlan-Bss1]  quit

[AR] wlan                                                                                          //进入WLAN视图

[AR-wlan-view] security-profile name employee                            //创建名称为“employee”的安全模板

[AR-wlan-sec-prof-employee] security-policy wpa2                       //配置使用WPA2安全策略并设置密码

[AR-wlan-sec-prof-employee] wpa2 authentication-method psk pass-phrase cipher huawei@123 encryption-method ccmp

[AR-wlan-sec-prof-employee] quit

[AR-wlan-view] traffic-profile name employee                               //创建名称为“employee”的流量模板，参数采用默认配置

[AR-wlan-traffic-prof-employee] quit

[AR-wlan-view] service-set name employee               //创建名称为“employee”的服务集，并绑定WLAN-BSS接口、安全模板和流量模板

[AR-wlan-service-set-employee] ssid employee                             //指定SSID为“employee”

[AR-wlan-service-set-employee] wlan-bss 1

[AR-wlan-service-set-employee] security-profile name employee

[AR-wlan-service-set-employee] traffic-profile name employee

[AR-wlan-service-set-employee] quit

[AR-wlan-view] quit

·

配置访客网络的服务集（guest）

·

[AR] interface wlan-bss 2                                                                 //创建WLAN-BSS2接口并加入相应业务VLAN

[AR-Wlan-Bss2] port hybrid tagged vlan 20

[AR-Wlan-Bss2]  quit

[AR] wlan

[AR-wlan-view] security-profile name guest                                    //创建名称为“guest”的安全模板

[AR-wlan-sec-prof-guest] security-policy wpa2

[AR-wlan-sec-prof-guest] wpa2 authentication-method psk pass-phrase cipher abcd@123 encryption-method ccmp

[AR-wlan-sec-prof-guest] quit

[AR-wlan-view] traffic-profile name guest                                       //创建名称为“guest”的流量模板，参数采用默认配置

[AR-wlan-traffic-prof-guest] quit

[AR-wlan-view] service-set name  guest                   //创建名称为“guest”的服务集，并绑定WLAN-BSS接口、安全模板和流量模板

[AR-wlan-service-set-guest] ssid guest                                            //指定SSID为“guest”

[AR-wlan-service-set-guest] wlan-bss 2

[AR-wlan-service-set-guest] security-profile name guest

[AR-wlan-service-set-guest] traffic-profile name guest

[AR-wlan-service-set-guest] quit

[AR-wlan-view] quit

3. 配置VAP

[AR] interface wlan-radio 0/0/0

[AR-Wlan-Radio0/0/0] radio-profile name radiof                            //将射频口绑定默认存在的射频模板“radiof”

[AR-Wlan-Radio0/0/0] service-set name employee                         //将射频口绑定服务集“employee”

[AR-Wlan-Radio0/0/0] service-set name guest                                //将射频口绑定服务集“guest”

[AR-Wlan-Radio0/0/0] return
